Specifications
Content

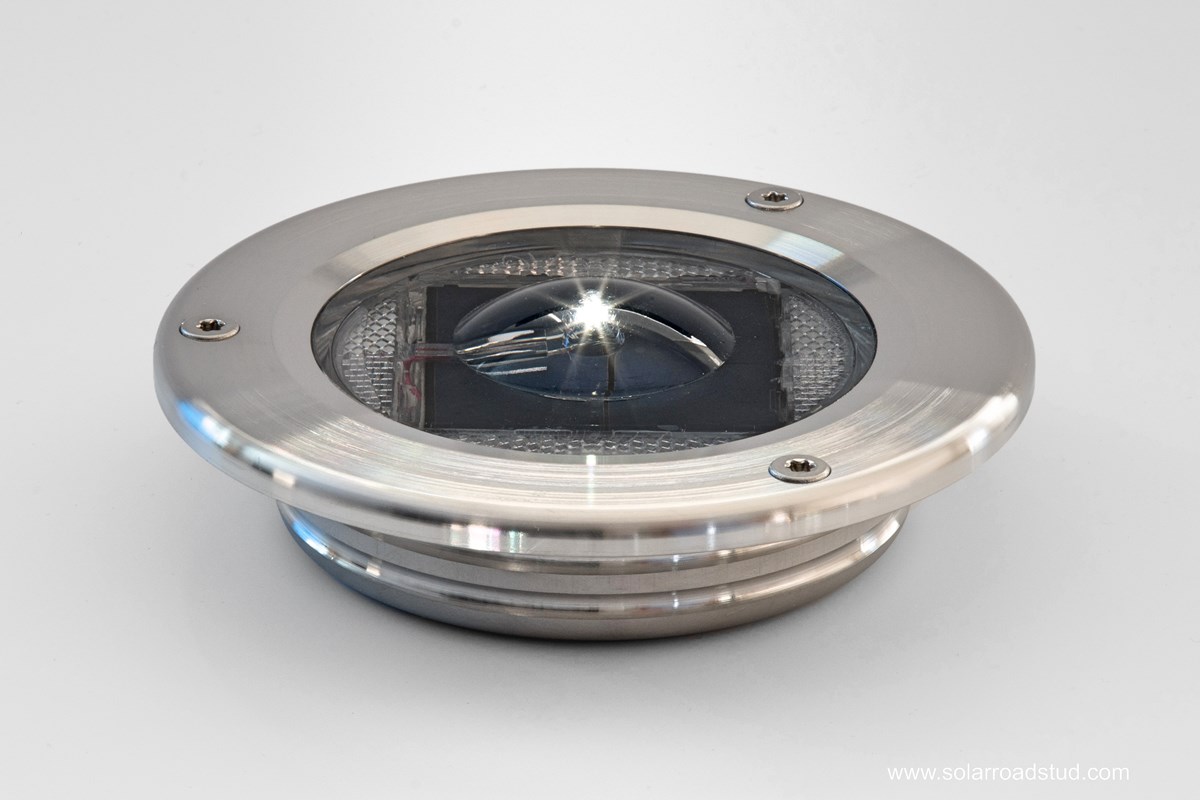

SolarVision 3
Focus Lens ∅35mm
SolarVision 4
Focus Lens ∅65mm
Dimension and Weight
♦ ∅ 84mm ♦ 400 gram
Road placement
Surface mounted (10mm above Asphalt)
Housing
Ring and Base: INOX, stainless steel (316L / 1.4404)
Screws
M3 TORX®
Lamp housing (capsule)
LEXAN™ POLYCARBONATE
1 LED
♦ Unidirectional ♦ beam angle of LED 90°
Reflectors
♦ 4 prismatic reflectors ♦ 3M® Diamond grade reflector
Light output of LED
> 17'000mCd (Nichia® LED's: white, red, orange, green, blue, yellow)
Effect versions
steady / flash / candle-effect / snooze-mode
Energy conversion
♦ patented Dc-Dc convertor ♦ SunBoost® Technology
Micro controller
Microchip®
Battery type
♦ 2'200mAh Li-Polymer ♦ High Temp Ranch (-25°C up to +80 °C)
Endurance 1 LED
1'650mAh (Li-Po) : 3mA (1 LED) = 550 h (hours)
Type of Solar cell
♦ single Mono crystaline ♦ 50mm x 50mm (0,35Wp / 0,5V)
Feature
Not suitable for driving over
